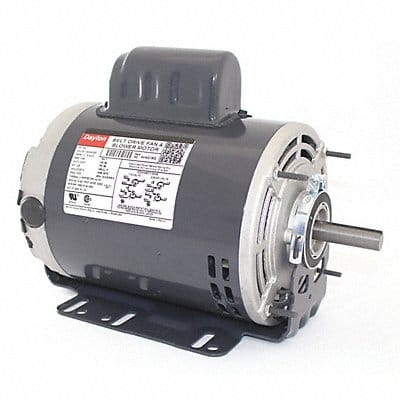

Belt Drive Motor Single Phase Motor Design Capacitor-Start 3/4 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/208-230V AC 11.1/5.5-5.5 A Full Load Amps 56 Frame 60 Hz Hz Motor Service Factor 1.25 Motor Thermal Protection Auto Ins. Class F Max Ambient Temp 140 Degrees F Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Cradle Base Motor Mounting Position All Angle Motor Frame Material Rolled SteelMRO4VAG7
| # | Attribute | Value |
|---|---|---|
| 1. | brand | DAYTON |
