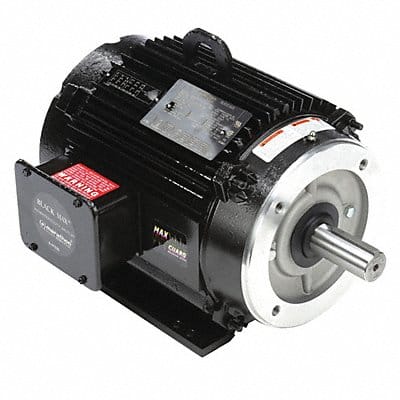

Vector Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 1 160 No of Speeds 1 Voltage 230/460V AC Full Load Amps 9.4/4.7 A 213TC Frame Torque 13.6 ft-lb Max Speed 4 200 RPM Speed Range 1 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection T-Stat Ins. Class F Max Ambient Temp 104 Degrees F Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCWMRO46M717
| # | Attribute | Value |
|---|---|---|
| 1. | brand | MARATHON MOTORS |
