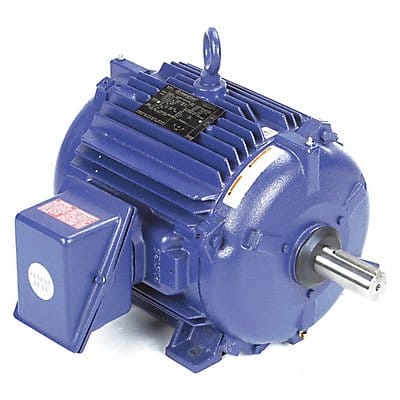

Kiln Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 1 170 No of Speeds 1 Voltage 460V AC Full Load Amps 9.8 254T Frame Usable @ 208V No Usable @ 200V No 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class H Max Ambient Temp 90 Degrees C Duty Cycle Continuous Motor Shaft Rotation CCW CW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Lead Length 96 in Inverter Rated Yes
