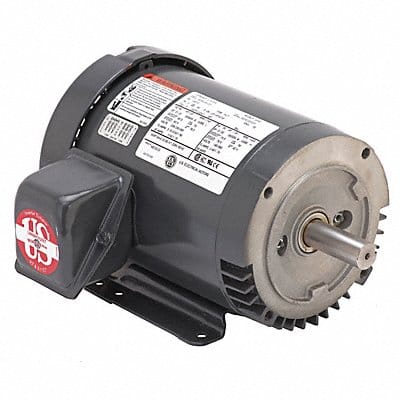

General Purpose Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 3 600 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 19.7-17.9/8.9 A 213TC Frame Hz 60/50 Hz Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face/BaseMRO23J907
| # | Attribute | Value |
|---|---|---|
| 1. | brand | U.S. MOTORS |
