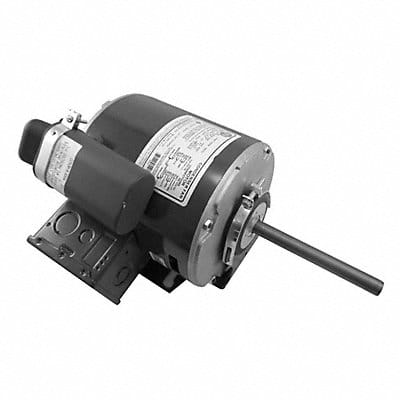

Condenser Fan Motor Motor Design Permanent Split Capacitor Phase Single 1/2 HP No of Speeds 1 Voltage 208-230/460 Motor Shaft Rotation CCWLE 48 Frame Motor Enclosure Design Open Dripproof Band/Stud Motor Mounting Type Motor Mounting Position Horizontal Shaft Dia 1/2 in Shaft Length 4 1/2 in Motor Thermal Protection Auto Max Ambient Temp 60 Degrees C Nameplate RPM 1 100 HVAC/R Condenser Fan 60 Hz Full Load Amps 2.8/1.5 Ins. Class B Motor Service Factor 1MRO56LZ85
| # | Attribute | Value |
|---|---|---|
| 1. | brand | U.S. MOTORS |
