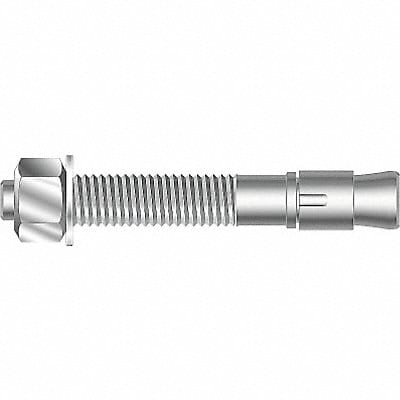

 Wedge Anchor System of Measurement Inch Anchor Diameter 1 in Thread Size 1 In.-8 Overall Length 9 in Thread Length 2 1/4 in Eyelet Hole Size Not Applicable Material Stainless Steel Material Grade/Class 18-8 Finish Plain Compatible Material Concrete Drill Bit Size 1 in Minimum Installation Depth 4 1/2 in Minimum Material Thickness 6 in Ultimate Shear Strength (4 000 psi Concrete) 28 023 lb Ultimate Tension Strength (4 000 psi Concrete) 15 829 lb Nut Width 1.5 inMRO21U974
Wedge Anchor System of Measurement Inch Anchor Diameter 1 in Thread Size 1 In.-8 Overall Length 9 in Thread Length 2 1/4 in Eyelet Hole Size Not Applicable Material Stainless Steel Material Grade/Class 18-8 Finish Plain Compatible Material Concrete Drill Bit Size 1 in Minimum Installation Depth 4 1/2 in Minimum Material Thickness 6 in Ultimate Shear Strength (4 000 psi Concrete) 28 023 lb Ultimate Tension Strength (4 000 psi Concrete) 15 829 lb Nut Width 1.5 inMRO21U974
| # | Attribute | Value |
|---|---|---|
| 1. | brand | MKT FASTENING |
