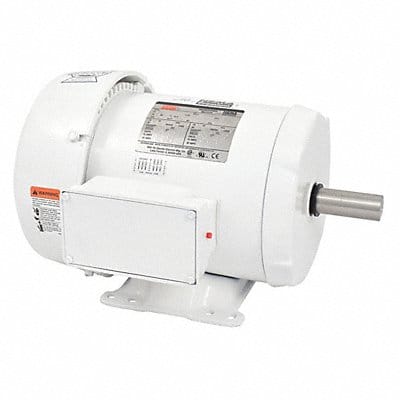

Washdown Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 1 755 Voltage 230/460V AC Full Load Amps 12.5/6.2 A 184T Frame 60/50 Hz Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Motor Frame Material Epoxy Coated Rolled SteelMRO5XAU4
| # | Attribute | Value |
|---|---|---|
| 1. | brand | DAYTON |
