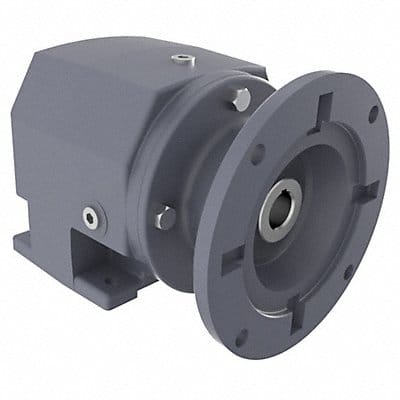

Speed Reducer Input Connection Type C-Face Gear Type Helical Maximum Output Speed 62 RPM Motor Frame Designation 56C Base to Center 1.56 in Gear Ratio 28 1 Rotation CW/CCW Maximum Input Horsepower 0.5 hp Maximum Output Torque 491 in-lb Overhung Load Capacity 385 ft-lb Mounting Orientation Any Angle Bearing Type Roller Maximum Input Speed 1 750 RPM Gear Material Hardened and Ground SteelMRO1F876
| # | Attribute | Value |
|---|---|---|
| 1. | brand | BOSTON GEAR |
