QAR 1,545
QAR 1,545

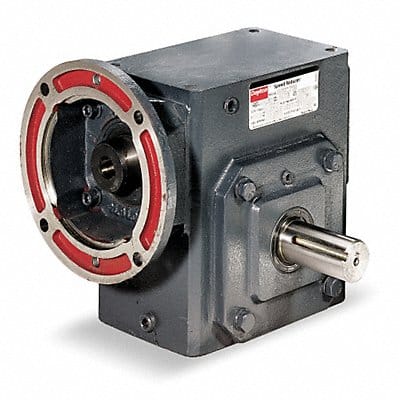

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Keyed Maximum Output Speed 88 RPM Motor Frame Designation 56C Worm Center Distance 2.06 in Gear Ratio 20 1 Rotation CW/CCW Maximum Input Horsepower 1 hp Maximum Output Torque 586 in-lb Overhung Load Capacity 875 ft-lb Mounting Orientation Any Angle Housing Material Cast Iron Application Speed Reducer Bearing Type Ball Tapered Roller Gear Material Hardened Steel Manganese BronzeMRO4RP17
| # | Attribute | Value |
|---|---|---|
| 1. | brand | DAYTON |
