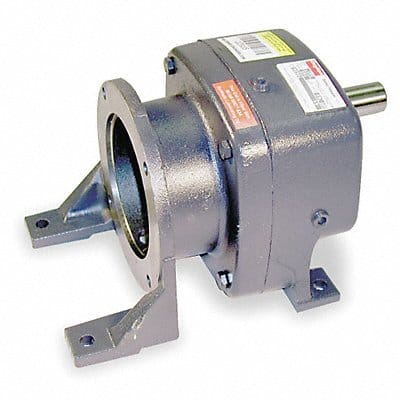

Speed Reducer Input Connection Type C-Face Gear Type Helical Maximum Output Speed 91 RPM Motor Frame Designation 56C Base to Center 4.88 in Gear Ratio 19 1 Rotation CW/CCW Maximum Input Horsepower 0.5 hp Maximum Output Torque 326 in-lb Overhung Load Capacity 660 ft-lb Mounting Orientation Horizontal Application Speed Reducer Bearing Type Ball Maximum Input Speed 1 750 RPM Gear Material Hardened SteelMRO2Z935
| # | Attribute | Value |
|---|---|---|
| 1. | brand | DAYTON |
