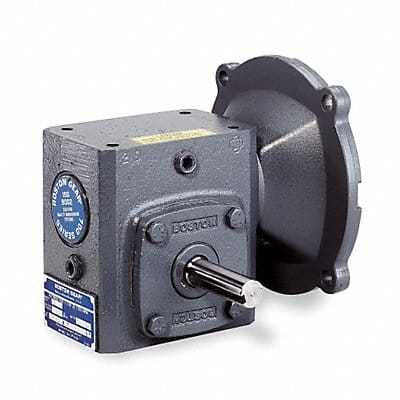

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Round Maximum Output Speed 175 RPM Motor Frame Designation 250TC Worm Center Distance 6 in Base to Center 6.5 in Gear Ratio 10 1 Rotation CW/CCW Maximum Input Horsepower 23.8 hp Maximum Output Torque 8067 in-lb Overhung Load Capacity 2 400 ft-lb Mounting Orientation Any Angle Housing Material Cast Iron Bearing Type Tapered Roller Gear Material Hardened and Ground SteelMRO1L879
| # | Attribute | Value |
|---|---|---|
| 1. | brand | BOSTON GEAR |
