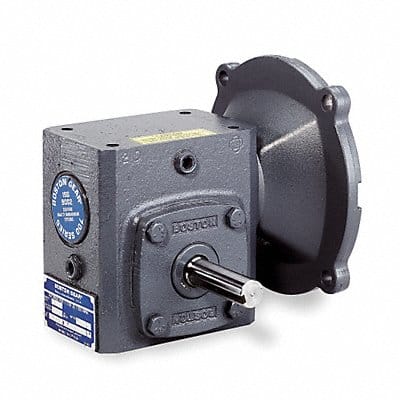

Speed Reducer Input Connection Type C-Face Gear Type Worm Output Shaft Type Round Maximum Output Speed 70 RPM Motor Frame Designation 180TC/210C Worm Center Distance 3.25 in Base to Center 3.5 in Gear Ratio 25 1 Rotation CW/CCW Maximum Input Horsepower 3.1 hp Maximum Output Torque 2443 in-lb Overhung Load Capacity 1 300 ft-lb Mounting Orientation Any Angle Housing Material Cast Iron Bearing Type Tapered Roller Gear Material Hardened and Ground SteelMRO1L854
| # | Attribute | Value |
|---|---|---|
| 1. | brand | BOSTON GEAR |
