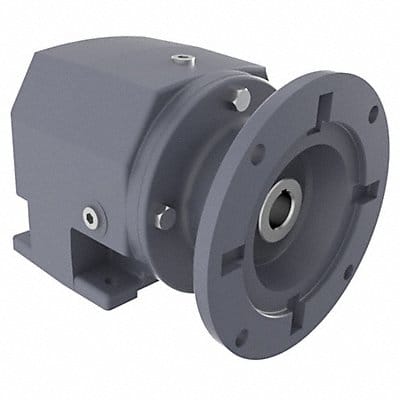

Speed Reducer Input Connection Type C-Face Gear Type Helical Output Shaft Type Round Maximum Output Speed 175 RPM Motor Frame Designation 180TC/210C Base to Center 1.97 in Gear Ratio 10 1 Rotation CW/CCW Maximum Input Horsepower 3 hp Maximum Output Torque 1006 in-lb Overhung Load Capacity 525 ft-lb Mounting Orientation Horizontal Vertical Bearing Type Ball Maximum Input Speed 1 750 RPM Gear Material Hardened and Ground SteelMRO3ZP44
| # | Attribute | Value |
|---|---|---|
| 1. | brand | BOSTON GEAR |
