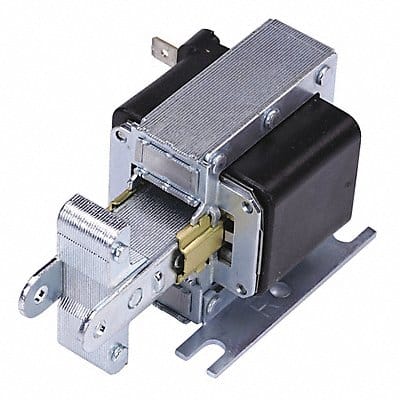

Solenoid AC Laminate Pull Type Stroke Range 0 to 1 in Pull Force Range 64.0 to 256.0 oz Width 2 1/2 in Depth 1 203/250 in Length 2 3/50 in Coil Volts 120 V AC Seated Amps 0.64 A Seated Watts 23.5 W Coil Resistance 18.3 ohms Coil Insulation Class 155 Class F Terminals 1/4 in QC Amps @ Max Stroke 6 A Duty Cycle Intermittent Max On Time 180 sec Material of Construction Steel Mounting Holes (4) slots .208 x .250 21/100 in From Mounting Holes to Plunger Hole Standards RoHS UMRO56JE70
| # | Attribute | Value |
|---|---|---|
| 1. | brand | LEDEX |
