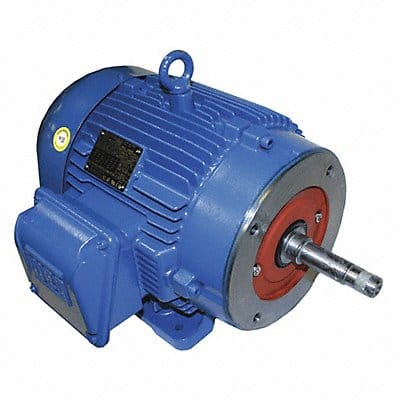

Close-Coupled Pump Motor Body Dia 9.3 in Bolt Circle Dia 5 7/8 in CC Number CC029A Conduit Box Location Exterior Conduit Box Position F1 Duty Cycle Continuous Frame 182/4JP Hz 60 Hz Full Load Amps 19.4-17.5/8.7 Full Load Amps @ 50Hz 19.4-17.5/8.7 Height 9 3/8 in HP 7 1/2 HP @ 50Hz 5 1/2 7 1/2 Includes Base Ins. Class F Inverter Rated Yes Inverter Rating 1000 1 Length Less Shaft 13 1/8 in Manufacturers Warranty Length 3 yr Max Ambient Temp 40 Degrees CMRO52XR02
| # | Attribute | Value |
|---|---|---|
| 1. | brand | WEG |
