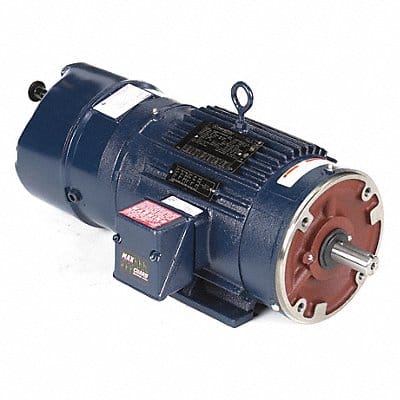

Vector Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 1 750 No of Speeds 1 Voltage 230/460V AC Full Load Amps 13.4/6.7 A 184TC Frame Torque 25 ft-lb Max Speed 5 400 RPM Speed Range 2 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 104 Degrees F Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCWMRO26VT67
| # | Attribute | Value |
|---|---|---|
| 1. | brand | MARATHON MOTORS |
