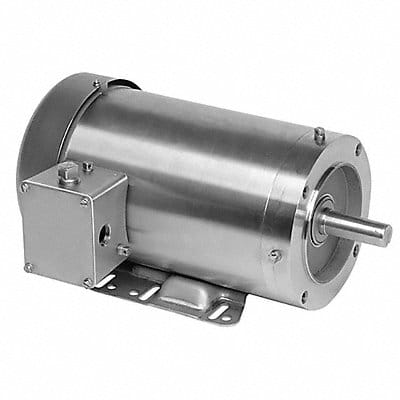

Washdown Motor Three Phase Motor Design 3-Phase 3/4 HP Nameplate RPM 3 520 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 2.2-2.1/1 A 56HC Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Hz Motor Service Factor 1.2 Motor Thermal Protection None Ins. Class F Max Ambient Temp 104 Degrees F Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face/Base Motor Mounting Position HorizontalMRO56HZ93
| # | Attribute | Value |
|---|---|---|
| 1. | brand | U.S. MOTORS |
