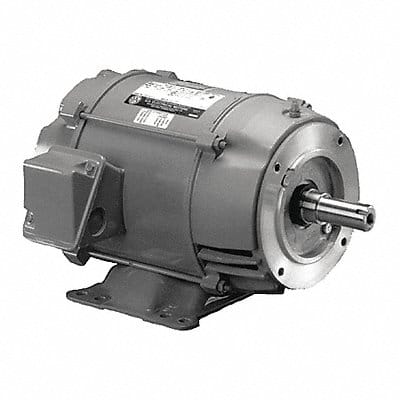

Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 755 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 3.2-3.1/1.5 A 143TC Frame Usable @ 208V Yes Usable @ 200V No Hz 60/50 Hz Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position HorizontalMRO56JC61
| # | Attribute | Value |
|---|---|---|
| 1. | brand | U.S. MOTORS |
