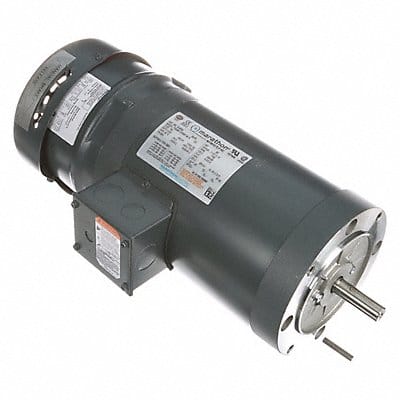

Brake Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 1 800 No of Speeds 1 Voltage 208-230/460V AC 4 .5-4 .3/2 .1 A Full Load Amps 56C Frame Usable @ 208V Yes Usable @ 200V No 60/50 Hz Hz Motor Service Factor 1.25 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face Inverter Rated YesMRO55MM10
| # | Attribute | Value |
|---|---|---|
| 1. | brand | U.S. MOTORS |
