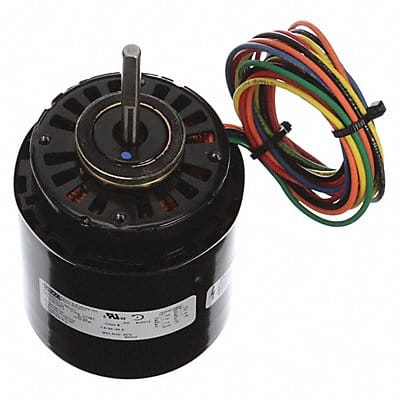

HVAC Motor Single Phase Motor Design Shaded Pole 1/15 HP Nameplate RPM 1 550 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 1.9/0.84-0.94 A 3.3 Frame Usable @ 208V Yes Usable @ 200V No Motor Thermal Protection Auto 60 Hz Hz Motor Service Factor 1 Ins. Class B Motor Shaft Rotation CCWSE Max Ambient Temp 40 Degrees C Lead Length 35 in Motor Enclosure Design Open Air-Over Motor Mounting Type Ring Number of Shafts 1MRO32NA58
| # | Attribute | Value |
|---|---|---|
| 1. | brand | FASCO |
