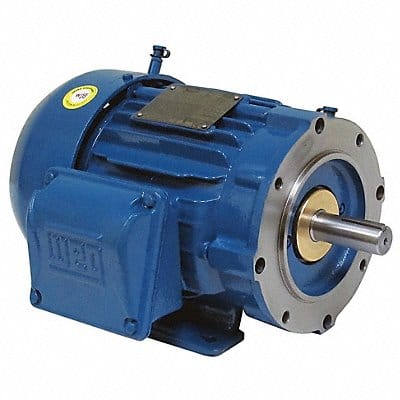

General Purpose Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 3 515 No of Speeds 1 Voltage 575V AC Full Load Amps 2.9 A 182TC Frame Usable @ 208V No Usable @ 200V No Hz 60 Hz Motor Service Factor 1.25 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design None Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Shaft Design KeyedMRO12N889
| # | Attribute | Value |
|---|---|---|
| 1. | brand | WEG |
