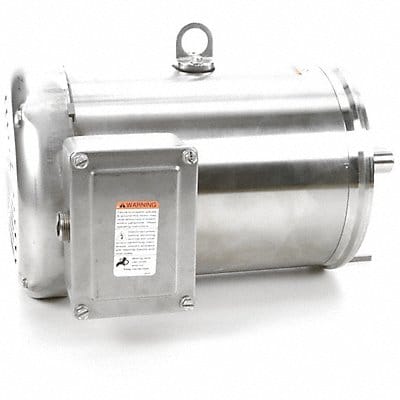

Washdown Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 3 495 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 13.2-12/6 A 184TC Frame Usable @ 208V Yes 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Round Motor Mounting Position Horizontal Inverter Rating 3 1MRO798GD1
| # | Attribute | Value |
|---|---|---|
| 1. | brand | LEESON |
