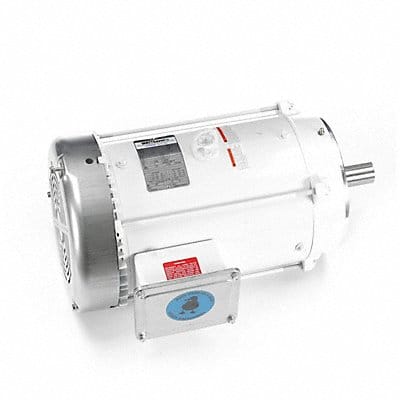

Washdown Motor Three Phase Motor Design 3-Phase 10 HP Nameplate RPM 3 525 No of Speeds 1 Voltage 230/460V AC Full Load Amps 23.6/11.8 A 215TC Frame 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Motor Frame Material Rolled SteelMRO798GE0
| # | Attribute | Value |
|---|---|---|
| 1. | brand | LEESON |
