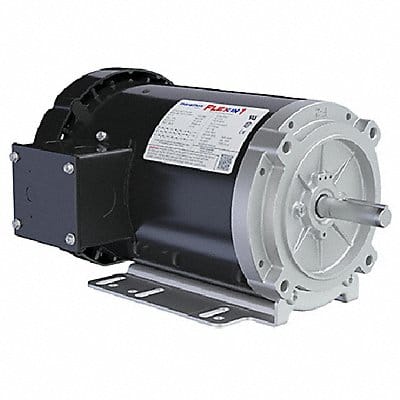

General Purpose Motors Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 575V AC Full Load Amps 3.1 A 56HC Frame Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CCW Motor Mounting Type Universal Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design KeyedMRO801VC5
| # | Attribute | Value |
|---|---|---|
| 1. | brand | MARATHON MOTORS |
