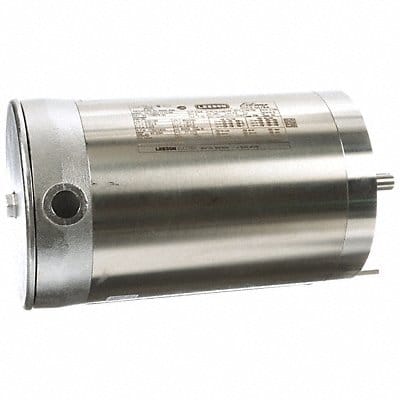

Washdown Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 750 No of Speeds 1 Voltage 230/460V AC Full Load Amps 2.8/1.4 A 56C Frame 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Round Motor Mounting Position Horizontal Inverter Rating 1000 1MRO798KM7
| # | Attribute | Value |
|---|---|---|
| 1. | brand | LEESON |
