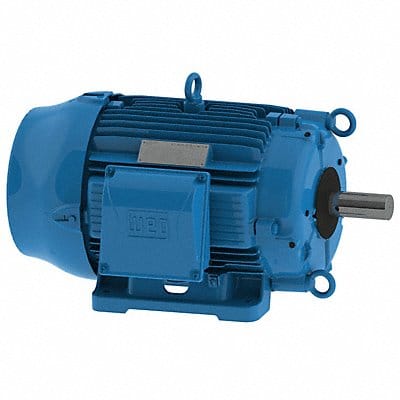

Cooling Tower Motor Three Phase Motor Design 3-Phase 40 HP Nameplate RPM 1 770 No of Speeds 1 Voltage 200V AC 108 A Full Load Amps 324T Frame Output Watts 30000 W 60 Hz Hz Usable @ 208V No Usable @ 200V Yes Motor Service Factor 1.25 Motor Thermal Protection None Ins. Class F Duty Cycle Continuous Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Frame Material Cast IronMRO19C692
| # | Attribute | Value |
|---|---|---|
| 1. | brand | WEG |
